DRYLITE DRYER

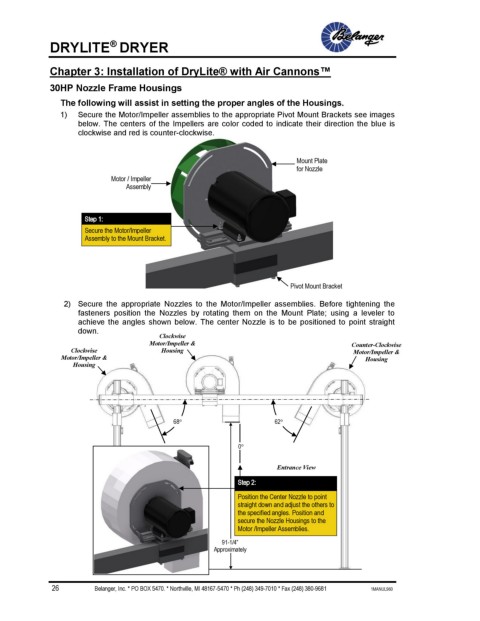

Chapter 3: Installation of DryLite® with Air Cannons™

30HP Nozzle Frame Housings

The following will assist in setting the proper angles of the Housings.
1) Secure the Motor/Impeller assemblies to the appropriate Pivot Mount Brackets see images
below. The centers of the Impellers are color coded to indicate their direction the blue is
clockwise and red is counter-clockwise.

Mount Plate
for Nozzle
Motor / Impeller
Assembly

Step 1:
Secure the Motor/Impeller
Assembly to the Mount Bracket.

Pivot Mount Bracket

2) Secure the appropriate Nozzles to the Motor/Impeller assemblies. Before tightening the
fasteners position the Nozzles by rotating them on the Mount Plate; using a leveler to
achieve the angles shown below. The center Nozzle is to be positioned to point straight
down.
Clockwise
Motor/Impeller & Counter-Clockwise

Clockwise Housing Motor/Impeller &
Motor/Impeller & Housing
Housing

68 62

0

Entrance View
Step 2:

Position the Center Nozzle to point
straight down and adjust the others to
the specified angles. Position and
secure the Nozzle Housings to the
Motor /Impeller Assemblies.
91-1/4”
Approximately
