DRYLITE DRYER
Chapter 3: Installation of DryLite® with Air Cannons™
20HP Nozzle Frame Housings

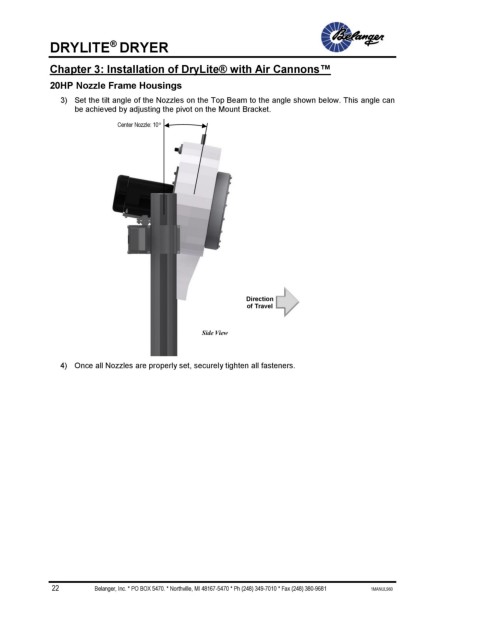

3) Set the tilt angle of the Nozzles on the Top Beam to the angle shown below. This angle can
be achieved by adjusting the pivot on the Mount Bracket.
Center Nozzle: 10
Direction
of Travel
Side View
4) Once all Nozzles are properly set, securely tighten all fasteners.
