DRYLITE DRYER

Chapter 3: Installation of DryLite® with Air Cannons™

10HP Nozzle Frame Housings

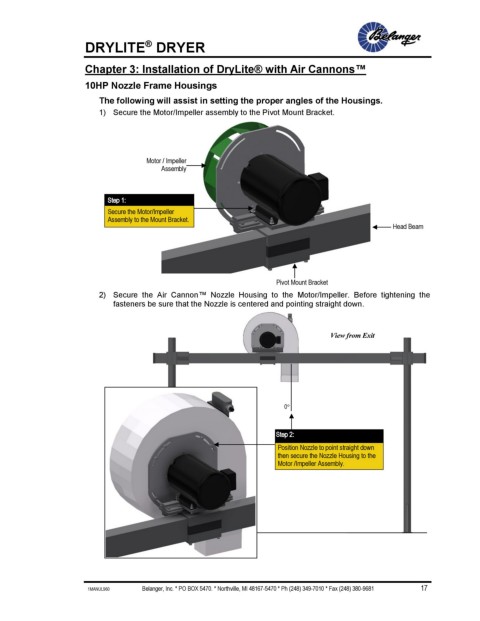

The following will assist in setting the proper angles of the Housings.
1) Secure the Motor/Impeller assembly to the Pivot Mount Bracket.

Motor / Impeller
Assembly

Step 1:
Secure the Motor/Impeller
Assembly to the Mount Bracket.
Head Beam

Pivot Mount Bracket
2) Secure the Air Cannon™ Nozzle Housing to the Motor/Impeller. Before tightening the
fasteners be sure that the Nozzle is centered and pointing straight down.

View from Exit

0

Step 2:
Position Nozzle to point straight down
then secure the Nozzle Housing to the
Motor /Impeller Assembly.
