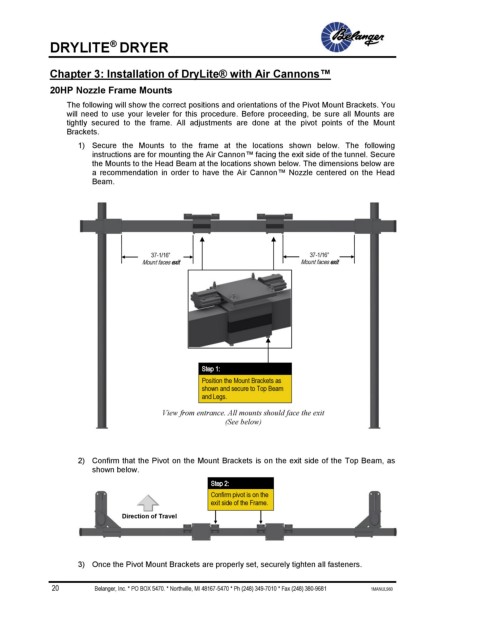

DRYLITE DRYER

Chapter 3: Installation of DryLite® with Air Cannons™

20HP Nozzle Frame Mounts
The following will show the correct positions and orientations of the Pivot Mount Brackets. You
will need to use your leveler for this procedure. Before proceeding, be sure all Mounts are
tightly secured to the frame. All adjustments are done at the pivot points of the Mount
Brackets.
1) Secure the Mounts to the frame at the locations shown below. The following
instructions are for mounting the Air Cannon™ facing the exit side of the tunnel. Secure
the Mounts to the Head Beam at the locations shown below. The dimensions below are
a recommendation in order to have the Air Cannon™ Nozzle centered on the Head
Beam.

37-1/16” 37-1/16”
Mount faces exit Mount faces exit

Step 1:
Position the Mount Brackets as
shown and secure to Top Beam
and Legs.
View from entrance. All mounts should face the exit
(See below)

2) Confirm that the Pivot on the Mount Brackets is on the exit side of the Top Beam, as
shown below.
Step 2:
Confirm pivot is on the
exit side of the Frame.

Direction of Travel

3) Once the Pivot Mount Brackets are properly set, securely tighten all fasteners.
