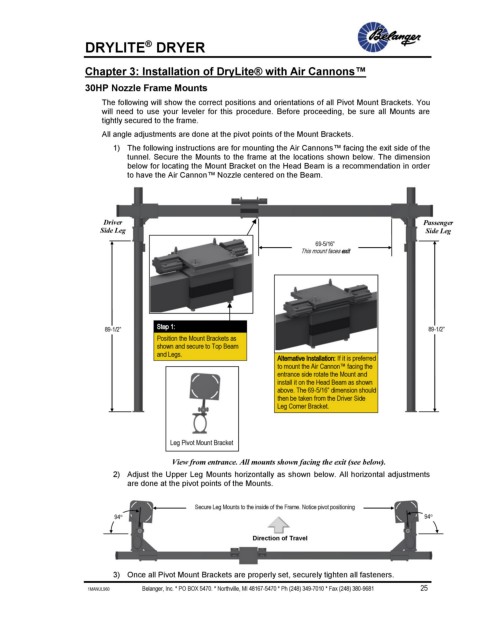

DRYLITE DRYER

Chapter 3: Installation of DryLite® with Air Cannons™

30HP Nozzle Frame Mounts

The following will show the correct positions and orientations of all Pivot Mount Brackets. You
will need to use your leveler for this procedure. Before proceeding, be sure all Mounts are
tightly secured to the frame.

All angle adjustments are done at the pivot points of the Mount Brackets.
1) The following instructions are for mounting the Air Cannons™ facing the exit side of the
tunnel. Secure the Mounts to the frame at the locations shown below. The dimension
below for locating the Mount Bracket on the Head Beam is a recommendation in order
to have the Air Cannon™ Nozzle centered on the Beam.

Driver Passenger
Side Leg Side Leg
69-5/16”
This mount faces exit

89-1/2” Step 1: 89-1/2”
Position the Mount Brackets as
shown and secure to Top Beam
and Legs.
Alternative Installation: If it is preferred
to mount the Air Cannon™ facing the
entrance side rotate the Mount and
install it on the Head Beam as shown
above. The 69-5/16” dimension should
then be taken from the Driver Side
Leg Corner Bracket.

Pivot
Point

Leg Pivot Mount Bracket

View from entrance. All mounts shown facing the exit (see below).
2) Adjust the Upper Leg Mounts horizontally as shown below. All horizontal adjustments
are done at the pivot points of the Mounts.

Secure Leg Mounts to the inside of the Frame. Notice pivot positioning
94 94

Direction of Travel

3) Once all Pivot Mount Brackets are properly set, securely tighten all fasteners.
1MANUL960 Belanger, Inc. * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 25
