DRYLITE DRYER

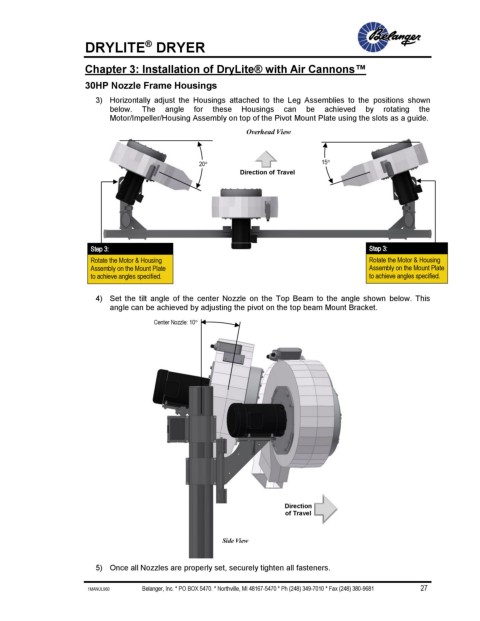

Chapter 3: Installation of DryLite® with Air Cannons™

30HP Nozzle Frame Housings
3) Horizontally adjust the Housings attached to the Leg Assemblies to the positions shown
below. The angle for these Housings can be achieved by rotating the
Motor/Impeller/Housing Assembly on top of the Pivot Mount Plate using the slots as a guide.

Overhead View

20 15
Direction of Travel

Step 3: Step 3:
Rotate the Motor & Housing Rotate the Motor & Housing
Assembly on the Mount Plate Assembly on the Mount Plate
to achieve angles specified. to achieve angles specified.

4) Set the tilt angle of the center Nozzle on the Top Beam to the angle shown below. This
angle can be achieved by adjusting the pivot on the top beam Mount Bracket.

Center Nozzle: 10

Direction
of Travel

Side View

5) Once all Nozzles are properly set, securely tighten all fasteners.

1MANUL960 Belanger, Inc. * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 27
