DRYLITE DRYER
Chapter 3: Installation of DryLite® with Air Cannons™

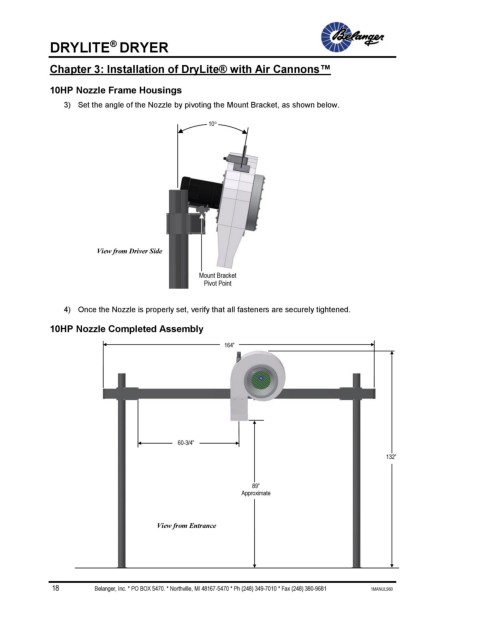

10HP Nozzle Frame Housings
3) Set the angle of the Nozzle by pivoting the Mount Bracket, as shown below.
10
View from Driver Side
Mount Bracket
Pivot Point
4) Once the Nozzle is properly set, verify that all fasteners are securely tightened.
10HP Nozzle Completed Assembly
164”
60-3/4”
132”
89”
Approximate
View from Entrance
