DRYLITE DRYER

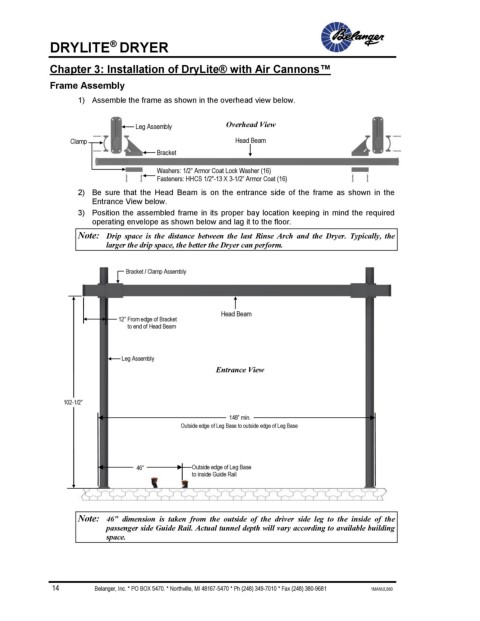

Chapter 3: Installation of DryLite® with Air Cannons™

Frame Assembly
1) Assemble the frame as shown in the overhead view below.

Leg Assembly Overhead View
Clamp Head Beam
Bracket
Washers: 1/2” Armor Coat Lock Washer (16)
Fasteners: HHCS 1/2"-13 X 3-1/2” Armor Coat (16)

2) Be sure that the Head Beam is on the entrance side of the frame as shown in the
Entrance View below.
3) Position the assembled frame in its proper bay location keeping in mind the required
operating envelope as shown below and lag it to the floor.
Note: Drip space is the distance between the last Rinse Arch and the Dryer. Typically, the
larger the drip space, the better the Dryer can perform.

Bracket / Clamp Assembly

Head Beam
12” From edge of Bracket
to end of Head Beam

Leg Assembly
Entrance View

102-1/2”
148” min.
Outside edge of Leg Base to outside edge of Leg Base

46” Outside edge of Leg Base
to inside Guide Rail

Note: 46” dimension is taken from the outside of the driver side leg to the inside of the
passenger side Guide Rail. Actual tunnel depth will vary according to available building
space.
