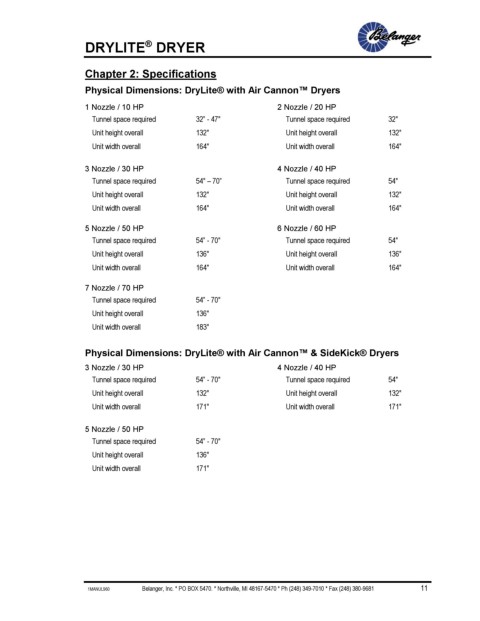

DRYLITE DRYER

Chapter 2: Specifications

Physical Dimensions: DryLite® with Air Cannon™ Dryers
1 Nozzle / 10 HP 2 Nozzle / 20 HP
Tunnel space required 32” - 47" Tunnel space required 32"
Unit height overall 132" Unit height overall 132"

Unit width overall 164" Unit width overall 164"

3 Nozzle / 30 HP 4 Nozzle / 40 HP
Tunnel space required 54" – 70” Tunnel space required 54"
Unit height overall 132" Unit height overall 132"
Unit width overall 164" Unit width overall 164"

5 Nozzle / 50 HP 6 Nozzle / 60 HP
Tunnel space required 54” - 70" Tunnel space required 54"
Unit height overall 136" Unit height overall 136"
Unit width overall 164" Unit width overall 164"

7 Nozzle / 70 HP
Tunnel space required 54” - 70"
Unit height overall 136"
Unit width overall 183"

Physical Dimensions: DryLite® with Air Cannon™ & SideKick® Dryers
3 Nozzle / 30 HP 4 Nozzle / 40 HP
Tunnel space required 54” - 70" Tunnel space required 54"
Unit height overall 132" Unit height overall 132"
Unit width overall 171" Unit width overall 171"

5 Nozzle / 50 HP
Tunnel space required 54” - 70"
Unit height overall 136"
Unit width overall 171"
