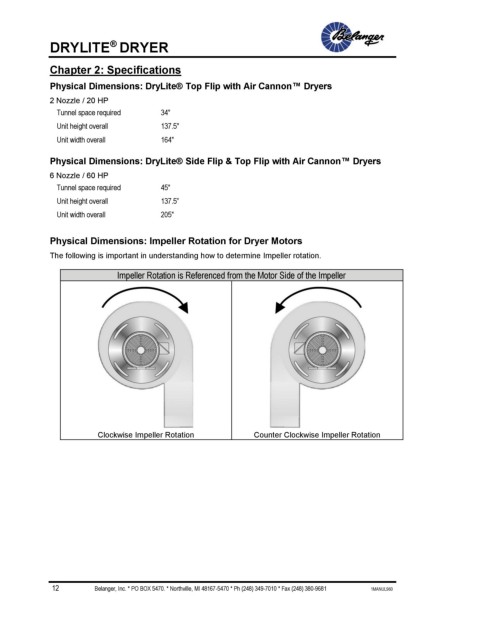

DRYLITE DRYER

Chapter 2: Specifications

Physical Dimensions: DryLite® Top Flip with Air Cannon™ Dryers
2 Nozzle / 20 HP
Tunnel space required 34"
Unit height overall 137.5"

Unit width overall 164"

Physical Dimensions: DryLite® Side Flip & Top Flip with Air Cannon™ Dryers
6 Nozzle / 60 HP
Tunnel space required 45"
Unit height overall 137.5”

Unit width overall 205"

Physical Dimensions: Impeller Rotation for Dryer Motors
The following is important in understanding how to determine Impeller rotation.

Impeller Rotation is Referenced from the Motor Side of the Impeller

Clockwise Impeller Rotation Counter Clockwise Impeller Rotation
