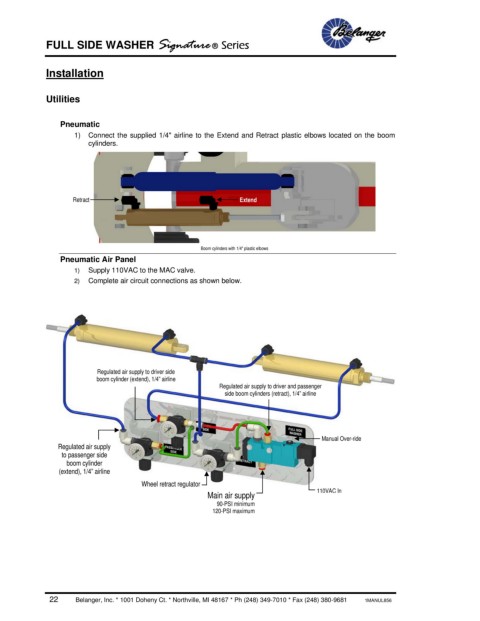

FULL SIDE WASHER Signature ® Series

Installation

Utilities

Pneumatic
1) Connect the supplied 1/4" airline to the Extend and Retract plastic elbows located on the boom
cylinders.

Retract Extend

Boom cylinders with 1/4" plastic elbows
Pneumatic Air Panel
1) Supply 110VAC to the MAC valve.
2) Complete air circuit connections as shown below.

Regulated air supply to driver side
boom cylinder (extend), 1/4” airline
Regulated air supply to driver and passenger
side boom cylinders (retract), 1/4” airline

Manual Over-ride
Regulated air supply
to passenger side
boom cylinder
(extend), 1/4” airline
Wheel retract regulator
110VAC In
Main air supply
90-PSI minimum
120-PSI maximum
