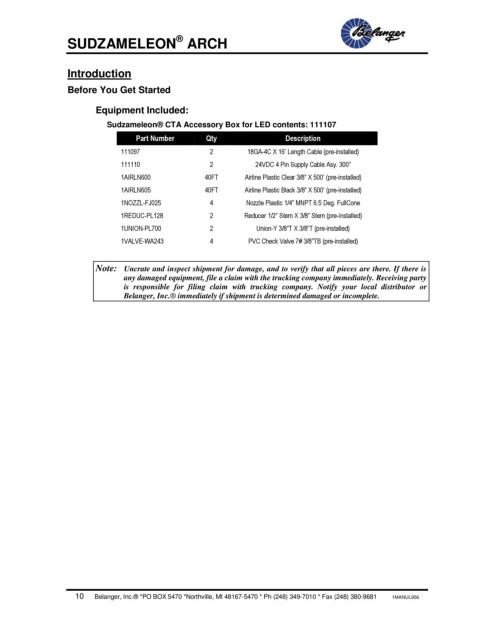

SUDZAMELEON ARCH

Introduction
Before You Get Started

Equipment Included:
Sudzameleon® CTA Accessory Box for LED contents: 111107
Part Number Qty Description

111097 2 18GA-4C X 16’ Length Cable (pre-installed)
111110 2 24VDC 4 Pin Supply Cable Asy. 300”
1AIRLN600 40FT Airline Plastic Clear 3/8” X 500’ (pre-installed)
1AIRLN605 40FT Airline Plastic Black 3/8” X 500’ (pre-installed)
1NOZZL-FJ025 4 Nozzle Plastic 1/4” MNPT 6.5 Deg. FullCone
1REDUC-PL128 2 Reducer 1/2” Stem X 3/8” Stem (pre-installed)
1UNION-PL700 2 Union-Y 3/8”T X 3/8”T (pre-installed)
1VALVE-WA243 4 PVC Check Valve 7# 3/8”TB (pre-installed)

Note: Uncrate and inspect shipment for damage, and to verify that all pieces are there. If there is
any damaged equipment, file a claim with the trucking company immediately. Receiving party
is responsible for filing claim with trucking company. Notify your local distributor or
Belanger, Inc.® immediately if shipment is determined damaged or incomplete.
