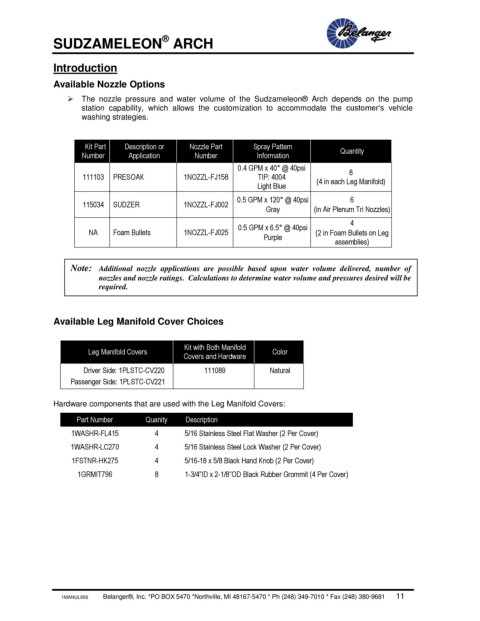

SUDZAMELEON ARCH

Introduction
Available Nozzle Options

 The nozzle pressure and water volume of the Sudzameleon® Arch depends on the pump
station capability, which allows the customization to accommodate the customer’s vehicle
washing strategies.

KKit Part Description or Nozzle Part Spray Pattern Quantity
Number Application Number Information
0.4 GPM x 40° @ 40psi
111103 PRESOAK 1NOZZL-FJ158 TIP: 4004 8
Light Blue (4 in each Leg Manifold)
0.5 GPM x 120° @ 40psi 6
115034 SUDZER 1NOZZL-FJ002
Gray (in Air Plenum Tri Nozzles)
4
0.5 GPM x 6.5° @ 40psi
NA Foam Bullets 1NOZZL-FJ025 (2 in Foam Bullets on Leg
Purple
assemblies)

Note: Additional nozzle applications are possible based upon water volume delivered, number of
nozzles and nozzle ratings. Calculations to determine water volume and pressures desired will be

required.

Available Leg Manifold Cover Choices

Kit with Both Manifold
Leg Manifold Covers Color
Covers and Hardware
Driver Side: 1PLSTC-CV220 111089 Natural
Passenger Side: 1PLSTC-CV221

Hardware components that are used with the Leg Manifold Covers:
Part Number Quanity Description
1WASHR-FL415 4 5/16 Stainless Steel Flat Washer (2 Per Cover)
1WASHR-LC270 4 5/16 Stainless Steel Lock Washer (2 Per Cover)

1FSTNR-HK275 4 5/16-18 x 5/8 Black Hand Knob (2 Per Cover)
1GRMIT796 8 1-3/4”ID x 2-1/8”OD Black Rubber Grommit (4 Per Cover)
