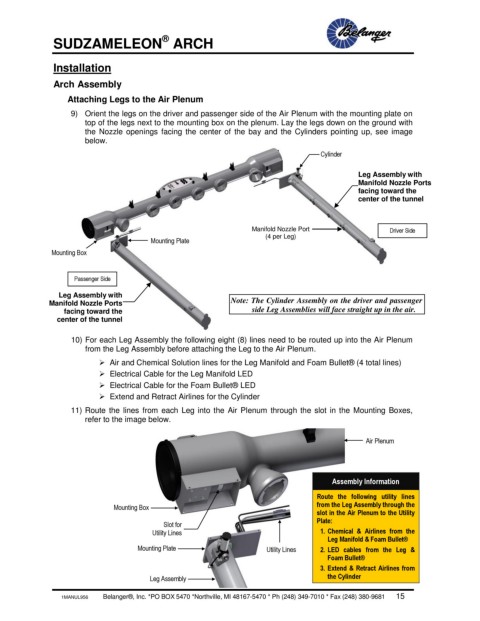

SUDZAMELEON ARCH

Installation
Arch Assembly

Attaching Legs to the Air Plenum
9) Orient the legs on the driver and passenger side of the Air Plenum with the mounting plate on
top of the legs next to the mounting box on the plenum. Lay the legs down on the ground with
the Nozzle openings facing the center of the bay and the Cylinders pointing up, see image
below.
Cylinder

Leg Assembly with
Manifold Nozzle Ports
facing toward the
center of the tunnel

Manifold Nozzle Port Driver Side
(4 per Leg)
Mounting Plate
Mounting Box

Passenger Side
Leg Assembly with
Manifold Nozzle Ports Note: The Cylinder Assembly on the driver and passenger
facing toward the side Leg Assemblies will face straight up in the air.
center of the tunnel

10) For each Leg Assembly the following eight (8) lines need to be routed up into the Air Plenum
from the Leg Assembly before attaching the Leg to the Air Plenum.
 Air and Chemical Solution lines for the Leg Manifold and Foam Bullet® (4 total lines)
 Electrical Cable for the Leg Manifold LED
 Electrical Cable for the Foam Bullet® LED
 Extend and Retract Airlines for the Cylinder

11) Route the lines from each Leg into the Air Plenum through the slot in the Mounting Boxes,
refer to the image below.

Air Plenum

Assembly Information
Route the following utility lines
Mounting Box from the Leg Assembly through the
slot in the Air Plenum to the Utility
Plate:
Slot for
Utility Lines 1. Chemical & Airlines from the
Leg Manifold & Foam Bullet®
Mounting Plate Utility Lines 2. LED cables from the Leg &
Foam Bullet®
3. Extend & Retract Airlines from
Leg Assembly the Cylinder

1MANUL956 Belanger®, Inc. *PO BOX 5470 *Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 15
