SUDZAMELEON ARCH

Installation

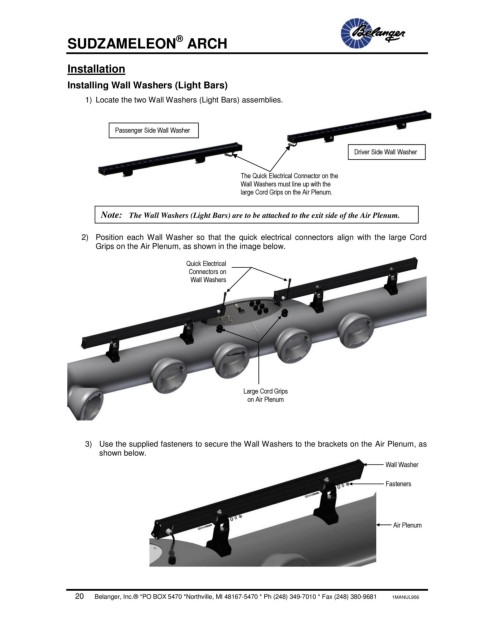

Installing Wall Washers (Light Bars)
1) Locate the two Wall Washers (Light Bars) assemblies.

Passenger Side Wall Washer

Driver Side Wall Washer

The Quick Electrical Connector on the
Wall Washers must line up with the

large Cord Grips on the Air Plenum.

Note: The Wall Washers (Light Bars) are to be attached to the exit side of the Air Plenum.

2) Position each Wall Washer so that the quick electrical connectors align with the large Cord
Grips on the Air Plenum, as shown in the image below.

Quick Electrical
Connectors on
Wall Washers

Large Cord Grips
on Air Plenum

3) Use the supplied fasteners to secure the Wall Washers to the brackets on the Air Plenum, as
shown below.
Wall Washer

Fasteners

Air Plenum
