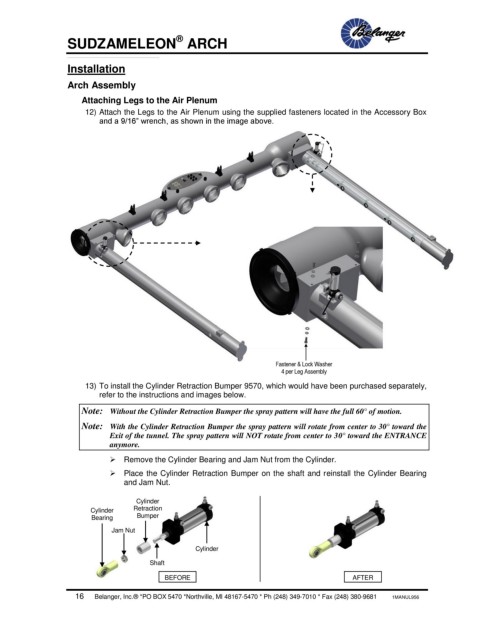

SUDZAMELEON ARCH

Installation

Arch Assembly
Attaching Legs to the Air Plenum
12) Attach the Legs to the Air Plenum using the supplied fasteners located in the Accessory Box
and a 9/16” wrench, as shown in the image above.

Fastener & Lock Washer
4 per Leg Assembly
13) To install the Cylinder Retraction Bumper 9570, which would have been purchased separately,
refer to the instructions and images below.

Note: Without the Cylinder Retraction Bumper the spray pattern will have the full 60° of motion.
Note: With the Cylinder Retraction Bumper the spray pattern will rotate from center to 30° toward the
Exit of the tunnel. The spray pattern will NOT rotate from center to 30° toward the ENTRANCE
anymore.

 Remove the Cylinder Bearing and Jam Nut from the Cylinder.
 Place the Cylinder Retraction Bumper on the shaft and reinstall the Cylinder Bearing
and Jam Nut.

Cylinder
Cylinder Retraction
Bearing Bumper
Jam Nut

Cylinder

Shaft

BEFORE AFTER
