SUDZAMELEON ARCH

Installation

Arch Assembly
Connecting Utility Lines to Utility Plate

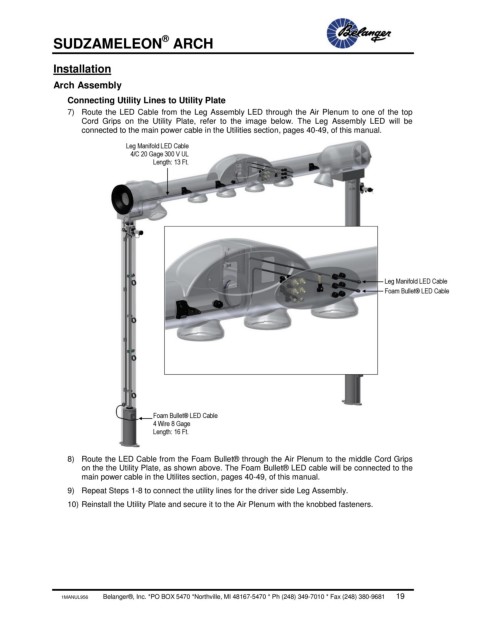

7) Route the LED Cable from the Leg Assembly LED through the Air Plenum to one of the top
Cord Grips on the Utility Plate, refer to the image below. The Leg Assembly LED will be
connected to the main power cable in the Utilities section, pages 40-49, of this manual.
Leg Manifold LED Cable
4/C 20 Gage 300 V UL
Length: 13 Ft.

Leg Manifold LED Cable
Foam Bullet® LED Cable

Foam Bullet® LED Cable
4 Wire 8 Gage
Length: 16 Ft.

8) Route the LED Cable from the Foam Bullet® through the Air Plenum to the middle Cord Grips
on the the Utility Plate, as shown above. The Foam Bullet® LED cable will be connected to the
main power cable in the Utilites section, pages 40-49, of this manual.

9) Repeat Steps 1-8 to connect the utility lines for the driver side Leg Assembly.
10) Reinstall the Utility Plate and secure it to the Air Plenum with the knobbed fasteners.
