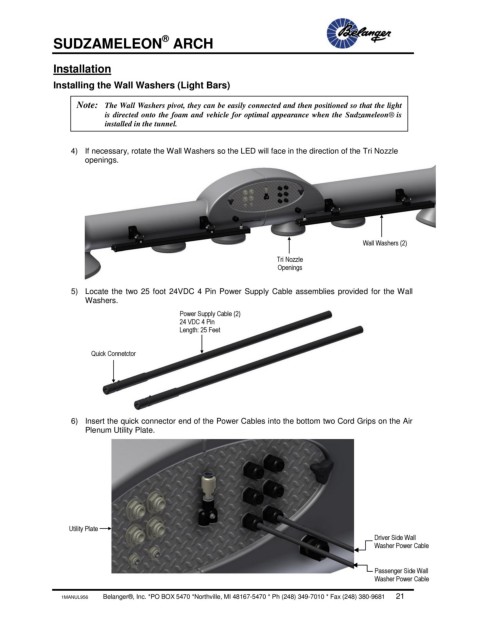

SUDZAMELEON ARCH

Installation

Installing the Wall Washers (Light Bars)

Note: The Wall Washers pivot, they can be easily connected and then positioned so that the light

is directed onto the foam and vehicle for optimal appearance when the Sudzameleon® is
installed in the tunnel.

4) If necessary, rotate the Wall Washers so the LED will face in the direction of the Tri Nozzle
openings.

Wall Washers (2)

Tri Nozzle
Openings

5) Locate the two 25 foot 24VDC 4 Pin Power Supply Cable assemblies provided for the Wall
Washers.
Power Supply Cable (2)
24 VDC 4 Pin
Length: 25 Feet

Quick Connetctor

6) Insert the quick connector end of the Power Cables into the bottom two Cord Grips on the Air
Plenum Utility Plate.

Utility Plate
Driver Side Wall
Washer Power Cable

Passenger Side Wall
Washer Power Cable
