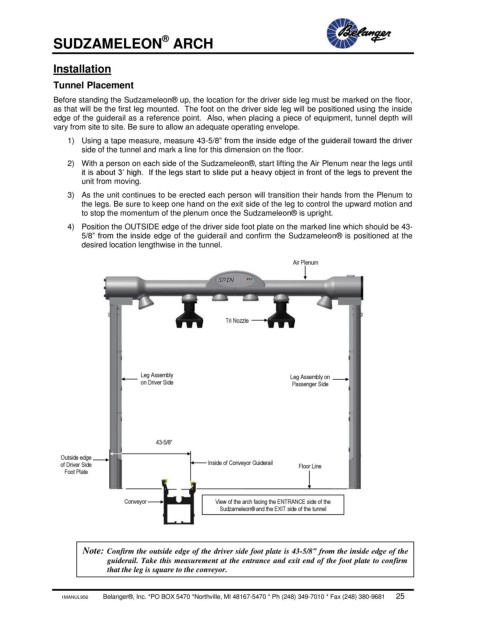

SUDZAMELEON ARCH

Installation

Tunnel Placement
Before standing the Sudzameleon® up, the location for the driver side leg must be marked on the floor,
as that will be the first leg mounted. The foot on the driver side leg will be positioned using the inside
edge of the guiderail as a reference point. Also, when placing a piece of equipment, tunnel depth will
vary from site to site. Be sure to allow an adequate operating envelope.
1) Using a tape measure, measure 43-5/8” from the inside edge of the guiderail toward the driver
side of the tunnel and mark a line for this dimension on the floor.
2) With a person on each side of the Sudzameleon®, start lifting the Air Plenum near the legs until
it is about 3’ high. If the legs start to slide put a heavy object in front of the legs to prevent the
unit from moving.
3) As the unit continues to be erected each person will transition their hands from the Plenum to
the legs. Be sure to keep one hand on the exit side of the leg to control the upward motion and
to stop the momentum of the plenum once the Sudzameleon® is upright.
4) Position the OUTSIDE edge of the driver side foot plate on the marked line which should be 43-
5/8” from the inside edge of the guiderail and confirm the Sudzameleon® is positioned at the
desired location lengthwise in the tunnel.

Air Plenum

Tri Nozzle

Leg Assembly Leg Assembly on
on Driver Side Passenger Side

43-5/8”
Outside edge
of Driver Side Inside of Conveyor Guiderail Floor Line
Foot Plate

Conveyor View of the arch facing the ENTRANCE side of the
Sudzameleon®and the EXIT side of the tunnel

Note: Confirm the outside edge of the driver side foot plate is 43-5/8” from the inside edge of the

guiderail. Take this measurement at the entrance and exit end of the foot plate to confirm
that the leg is square to the conveyor.
