SUDZAMELEON ARCH

Installation
Tunnel Placement

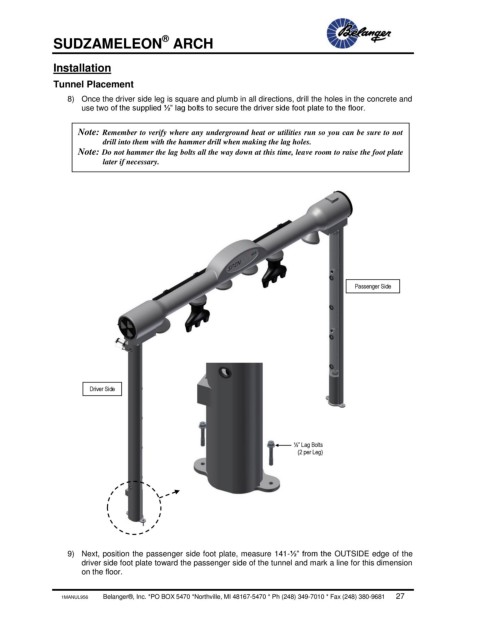

8) Once the driver side leg is square and plumb in all directions, drill the holes in the concrete and
use two of the supplied ½” lag bolts to secure the driver side foot plate to the floor.

Note: Remember to verify where any underground heat or utilities run so you can be sure to not
drill into them with the hammer drill when making the lag holes.
Note: Do not hammer the lag bolts all the way down at this time, leave room to raise the foot plate
later if necessary.

Passenger Side

Driver Side

½” Lag Bolts
(2 per Leg)

9) Next, position the passenger side foot plate, measure 141-½” from the OUTSIDE edge of the
driver side foot plate toward the passenger side of the tunnel and mark a line for this dimension
on the floor.
