SUDZAMELEON ARCH

Installation

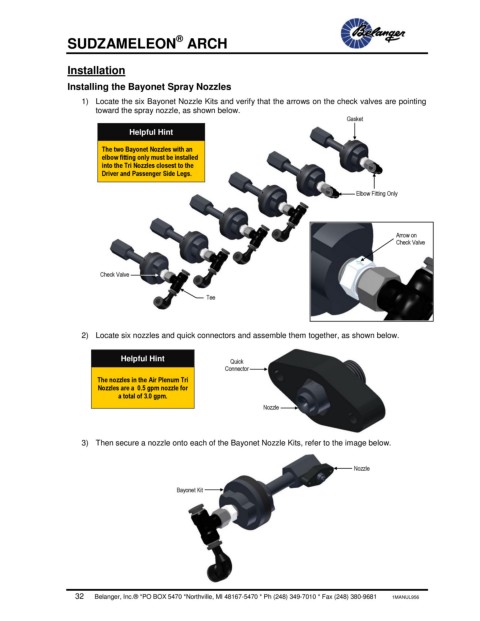

Installing the Bayonet Spray Nozzles
1) Locate the six Bayonet Nozzle Kits and verify that the arrows on the check valves are pointing
toward the spray nozzle, as shown below.
Gasket
Helpful Hint

The two Bayonet Nozzles with an
elbow fitting only must be installed
into the Tri Nozzles closest to the
Driver and Passenger Side Legs.

Elbow Fitting Only

Arrow on
Check Valve

Check Valve

Tee

2) Locate six nozzles and quick connectors and assemble them together, as shown below.

Helpful Hint Quick
Connector
The nozzles in the Air Plenum Tri
Nozzles are a 0.5 gpm nozzle for
a total of 3.0 gpm.
Nozzle

3) Then secure a nozzle onto each of the Bayonet Nozzle Kits, refer to the image below.

Nozzle

Bayonet Kit
