               SUDZAMELEON  ARCH


               Installation
               Installing Check Bodies and Nozzles into the Leg Manifolds

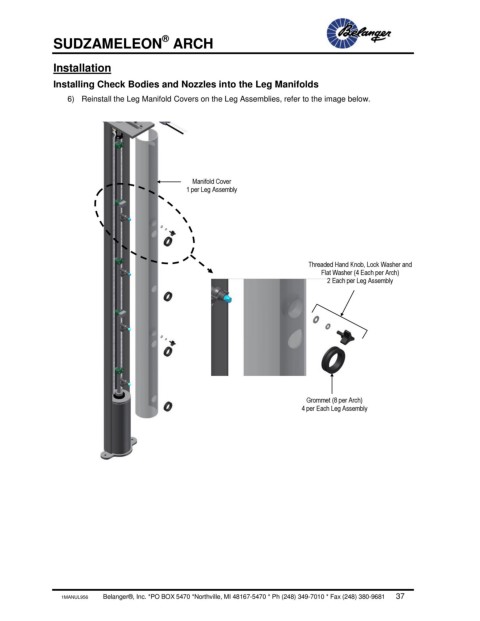

                  6)  Reinstall the Leg Manifold Covers on the Leg Assemblies, refer to the image below.










                                                  Manifold Cover
                                                1 per Leg Assembly










                                                                                Threaded Hand Knob, Lock Washer and
                                                                                   Flat Washer (4 Each per Arch)
                                                                                    2 Each per Leg Assembly
















                                                                               Grommet (8 per Arch)
                                                                              4 per Each Leg Assembly


























                 1MANUL956         Belanger®, Inc. *PO BOX 5470 *Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681     37
