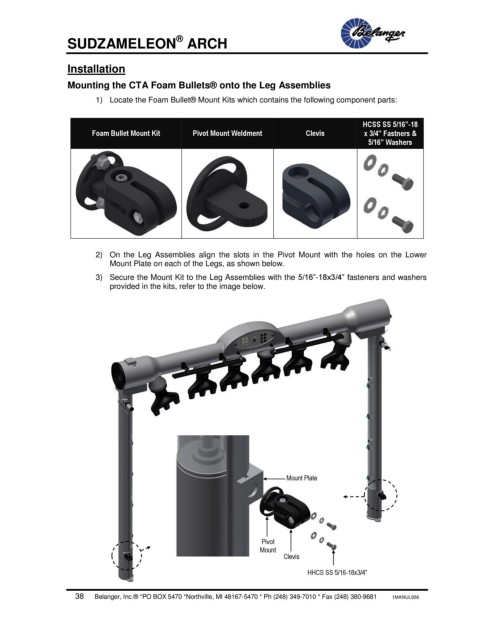

SUDZAMELEON ARCH

Installation

Mounting the CTA Foam Bullets® onto the Leg Assemblies
1) Locate the Foam Bullet® Mount Kits which contains the following component parts:

HCSS SS 5/16”-18
Foam Bullet Mount Kit Pivot Mount Weldment Clevis x 3/4” Fastners &
5/16” Washers

2) On the Leg Assemblies align the slots in the Pivot Mount with the holes on the Lower
Mount Plate on each of the Legs, as shown below.

3) Secure the Mount Kit to the Leg Assemblies with the 5/16”-18x3/4” fasteners and washers
provided in the kits, refer to the image below.

Mount Plate

Pivot
Mount
Clevis

HHCS SS 5/16-18x3/4”
