SUDZAMELEON ARCH

Installation

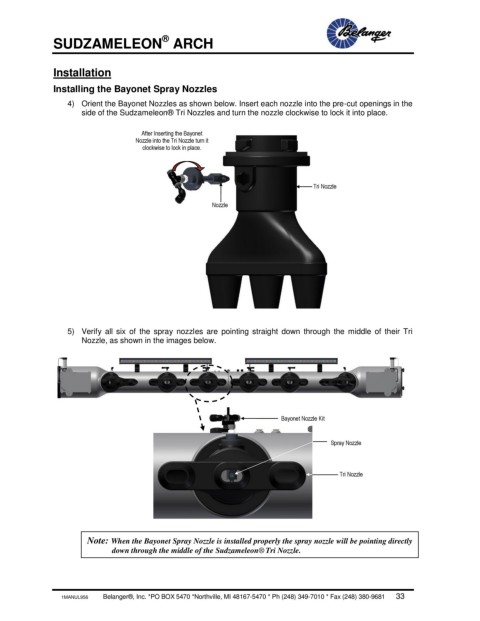

Installing the Bayonet Spray Nozzles

4) Orient the Bayonet Nozzles as shown below. Insert each nozzle into the pre-cut openings in the
side of the Sudzameleon® Tri Nozzles and turn the nozzle clockwise to lock it into place.

After Inserting the Bayonet
Nozzle into the Tri Nozzle turn it
clockwise to lock in place.

Tri Nozzle

Nozzle

5) Verify all six of the spray nozzles are pointing straight down through the middle of their Tri
Nozzle, as shown in the images below.

Bayonet Nozzle Kit

Spray Nozzle

Tri Nozzle

Note: When the Bayonet Spray Nozzle is installed properly the spray nozzle will be pointing directly

down through the middle of the Sudzameleon® Tri Nozzle.
