SUDZAMELEON ARCH

Installation

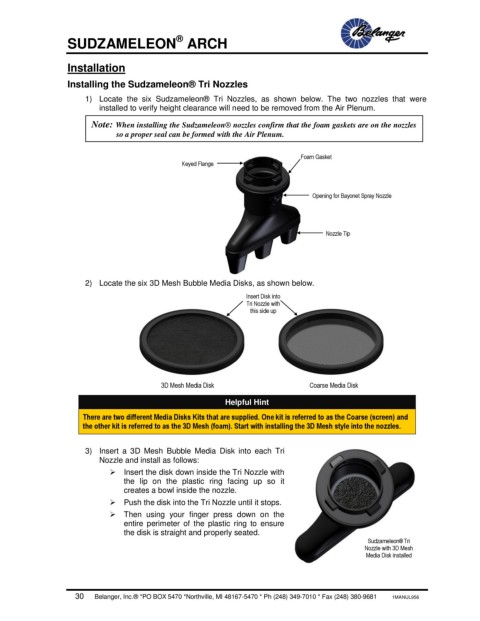

Installing the Sudzameleon® Tri Nozzles

1) Locate the six Sudzameleon® Tri Nozzles, as shown below. The two nozzles that were
installed to verify height clearance will need to be removed from the Air Plenum.

Note: When installing the Sudzameleon® nozzles confirm that the foam gaskets are on the nozzles
so a proper seal can be formed with the Air Plenum.

Foam Gasket
Keyed Flange

Opening for Bayonet Spray Nozzle

Nozzle Tip

2) Locate the six 3D Mesh Bubble Media Disks, as shown below.

Insert Disk into
Tri Nozzle with
this side up

3D Mesh Media Disk Coarse Media Disk

Helpful Hint
There are two different Media Disks Kits that are supplied. One kit is referred to as the Coarse (screen) and
the other kit is referred to as the 3D Mesh (foam). Start with installing the 3D Mesh style into the nozzles.

3) Insert a 3D Mesh Bubble Media Disk into each Tri
Nozzle and install as follows:
 Insert the disk down inside the Tri Nozzle with
the lip on the plastic ring facing up so it
creates a bowl inside the nozzle.
 Push the disk into the Tri Nozzle until it stops.
 Then using your finger press down on the
entire perimeter of the plastic ring to ensure
the disk is straight and properly seated.
Sudzameleon®Tri

Nozzle with 3D Mesh
Media Disk installed

30 Belanger, Inc.® *PO BOX 5470 *Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL956
