SUDZAMELEON ARCH

Installation

Tunnel Placement
5) Before lagging the driver side leg in place verify the leg is plumb in all directions using a level.
6) Shims may be used under the foot plate if necessary to make the driver side leg level.

7) Measure from the floor or conveyor surface to the tip of the Tri Nozzle installed on the driver
side of the Air Plenum, this measurement should be 90-7/8”.

Note: Later this same measurement will be taken on the passenger side to ensure that the

Sudzameleon® is level from the driver side to the passenger side.

Tri Nozzle

Driver Side Passenger Side

90-7/8”
Height Clearance

Floor Line

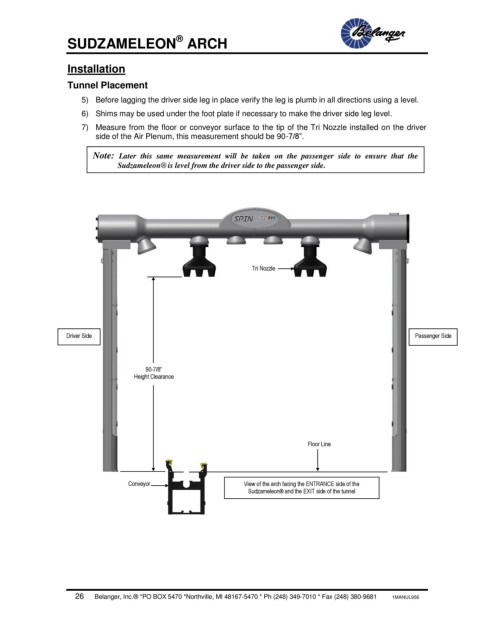

Conveyor View of the arch facing the ENTRANCE side of the
Sudzameleon® and the EXIT side of the tunnel
