SUDZAMELEON ARCH

Installation

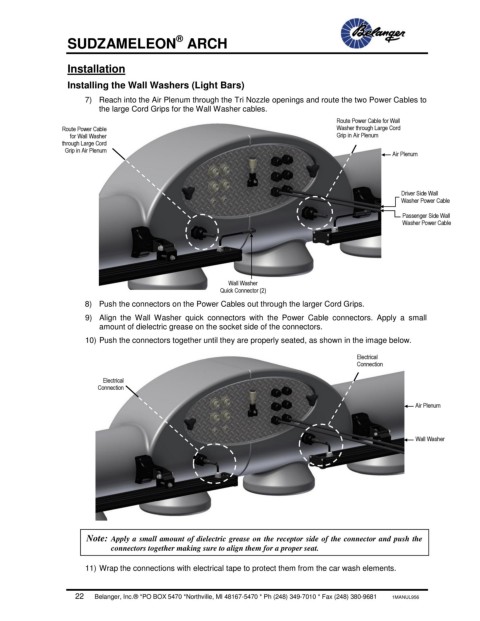

Installing the Wall Washers (Light Bars)
7) Reach into the Air Plenum through the Tri Nozzle openings and route the two Power Cables to
the large Cord Grips for the Wall Washer cables.
Route Power Cable for Wall
Route Power Cable Washer through Large Cord
for Wall Washer Grip in Air Plenum
through Large Cord
Grip in Air Plenum
Air Plenum

Driver Side Wall
Washer Power Cable

Passenger Side Wall
Washer Power Cable

Wall Washer
Quick Connector (2)
8) Push the connectors on the Power Cables out through the larger Cord Grips.
9) Align the Wall Washer quick connectors with the Power Cable connectors. Apply a small
amount of dielectric grease on the socket side of the connectors.

10) Push the connectors together until they are properly seated, as shown in the image below.
Electrical
Connection
Electrical
Connection

Air Plenum

Wall Washer

Note: Apply a small amount of dielectric grease on the receptor side of the connector and push the
connectors together making sure to align them for a proper seat.

11) Wrap the connections with electrical tape to protect them from the car wash elements.
