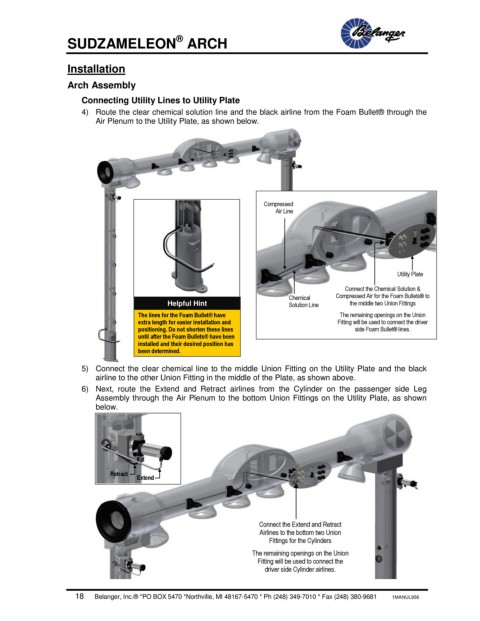

SUDZAMELEON ARCH

Installation

Arch Assembly
Connecting Utility Lines to Utility Plate
4) Route the clear chemical solution line and the black airline from the Foam Bullet® through the
Air Plenum to the Utility Plate, as shown below.

Compressed
Air Line

Utility Plate

Connect the Chemical Solution &

Chemical Compressed Air for the Foam Bullets® to
Helpful Hint Solution Line the middle two Union Fittings

The lines for the Foam Bullet® have The remaining openings on the Union
extra length for easier installation and Fitting will be used to connect the driver
positioning. Do not shorten these lines side Foam Bullet® lines.
until after the Foam Bullets® have been
installed and their desired position has
been determined.

5) Connect the clear chemical line to the middle Union Fitting on the Utility Plate and the black
airline to the other Union Fitting in the middle of the Plate, as shown above.
6) Next, route the Extend and Retract airlines from the Cylinder on the passenger side Leg
Assembly through the Air Plenum to the bottom Union Fittings on the Utility Plate, as shown
below.

Retract
Extend

Connect the Extend and Retract
Airlines to the bottom two Union
Fittings for the Cylinders

The remaining openings on the Union
Fitting will be used to connect the
driver side Cylinder airlines.
