SUDZAMELEON ARCH

Installation
Installing the Wall Washers (Light Bars)

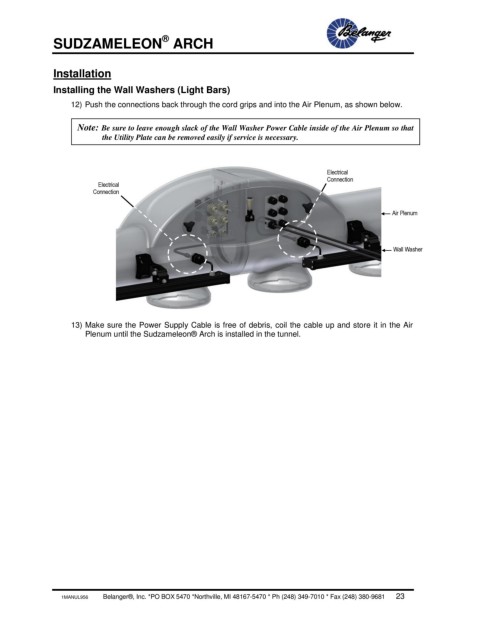

12) Push the connections back through the cord grips and into the Air Plenum, as shown below.

Note: Be sure to leave enough slack of the Wall Washer Power Cable inside of the Air Plenum so that
the Utility Plate can be removed easily if service is necessary.

Electrical
Connection
Electrical
Connection

Air Plenum

Wall Washer

13) Make sure the Power Supply Cable is free of debris, coil the cable up and store it in the Air
Plenum until the Sudzameleon® Arch is installed in the tunnel.
