SUDZAMELEON ARCH

Installation

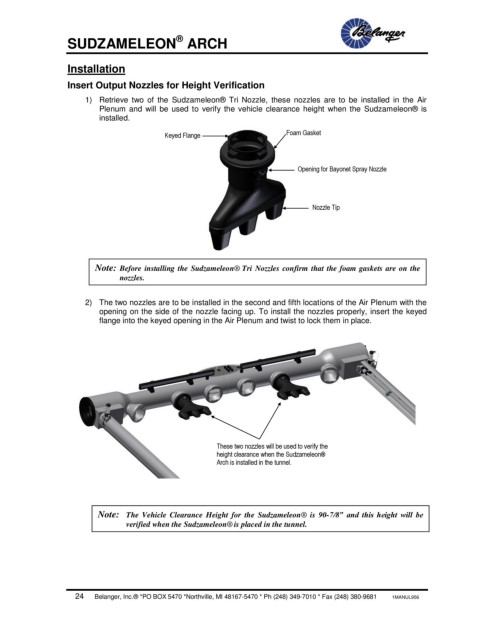

Insert Output Nozzles for Height Verification
1) Retrieve two of the Sudzameleon® Tri Nozzle, these nozzles are to be installed in the Air
Plenum and will be used to verify the vehicle clearance height when the Sudzameleon® is
installed.

Keyed Flange Foam Gasket

Opening for Bayonet Spray Nozzle

Nozzle Tip

Note: Before installing the Sudzameleon® Tri Nozzles confirm that the foam gaskets are on the
nozzles.

2) The two nozzles are to be installed in the second and fifth locations of the Air Plenum with the
opening on the side of the nozzle facing up. To install the nozzles properly, insert the keyed
flange into the keyed opening in the Air Plenum and twist to lock them in place.

These two nozzles will be used to verify the
height clearance when the Sudzameleon®
Arch is installed in the tunnel.

Note: The Vehicle Clearance Height for the Sudzameleon® is 90-7/8” and this height will be

verified when the Sudzameleon® is placed in the tunnel.
