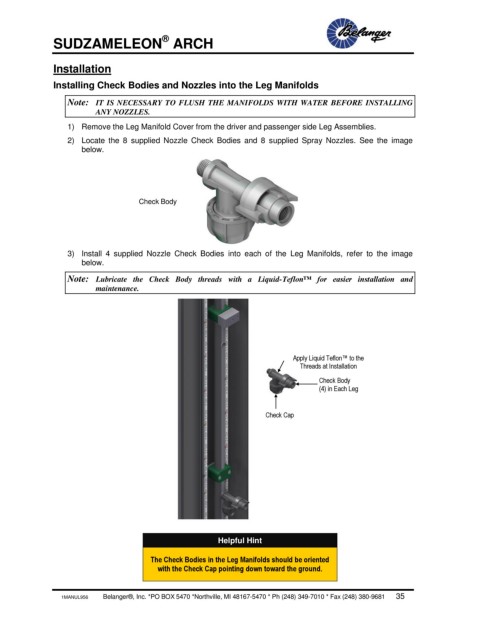

SUDZAMELEON ARCH

Installation

Installing Check Bodies and Nozzles into the Leg Manifolds

Note: IT IS NECESSARY TO FLUSH THE MANIFOLDS WITH WATER BEFORE INSTALLING
ANY NOZZLES.

1) Remove the Leg Manifold Cover from the driver and passenger side Leg Assemblies.
2) Locate the 8 supplied Nozzle Check Bodies and 8 supplied Spray Nozzles. See the image
below.

Check Body

3) Install 4 supplied Nozzle Check Bodies into each of the Leg Manifolds, refer to the image
below.

Note: Lubricate the Check Body threads with a Liquid-Teflon™ for easier installation and
maintenance.

Apply Liquid Teflon™ to the
Threads at Installation
Check Body
(4) in Each Leg

Check Cap

Helpful Hint
The Check Bodies in the Leg Manifolds should be oriented
with the Check Cap pointing down toward the ground.
