               SUDZAMELEON  ARCH


               Installation

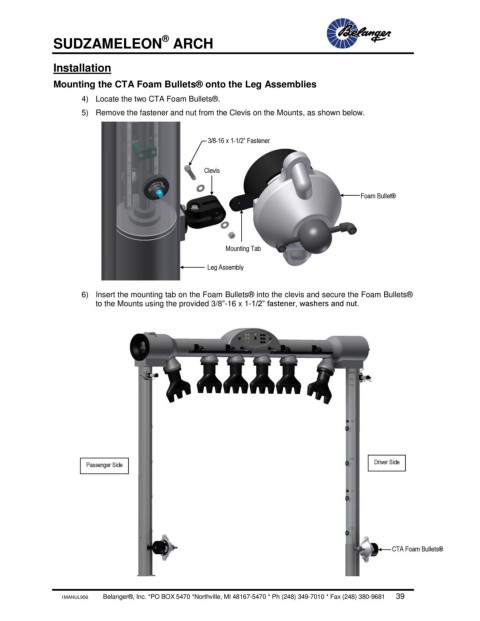

               Mounting the CTA Foam Bullets® onto the Leg Assemblies

                      4)  Locate the two CTA Foam Bullets®.
                      5)  Remove the fastener and nut from the Clevis on the Mounts, as shown below.



                                                      3/8-16 x 1-1/2” Fastener


                                                     Clevis


                                                                                             Foam Bullet®







                                                           Mounting Tab

                                                      Leg Assembly

                      6)  Insert the mounting tab on the Foam Bullets® into the clevis and secure the Foam Bullets®
                         to the Mounts using the provided 3/8”-16 x 1-1/2” fastener, washers and nut.























                       Passenger Side                                                           Driver Side











                                                                                                     CTA Foam Bullets®
