Page 45 - Sudzameleon® Arch

®
SUDZAMELEON ARCH

Utilities

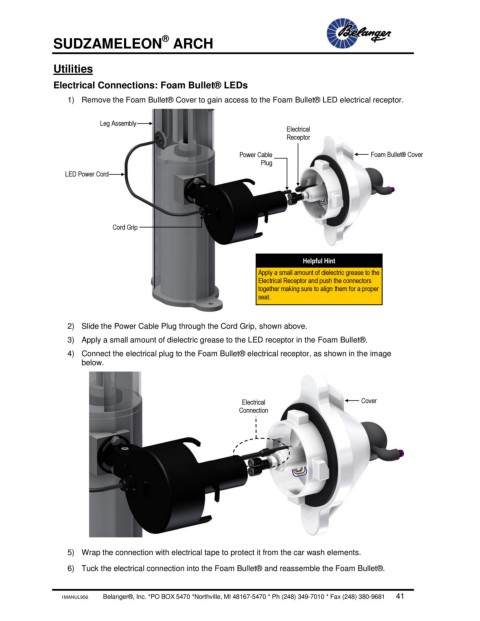

Electrical Connections: Foam Bullet® LEDs
1) Remove the Foam Bullet® Cover to gain access to the Foam Bullet® LED electrical receptor.

Leg Assembly
Electrical
Receptor

Power Cable Foam Bullet® Cover
Plug
LED Power Cord

Cord Grip

Helpful Hint
Apply a small amount of dielectric grease to the
Electrical Receptor and push the connectors
together making sure to align them for a proper
seat.

2) Slide the Power Cable Plug through the Cord Grip, shown above.

3) Apply a small amount of dielectric grease to the LED receptor in the Foam Bullet®.
4) Connect the electrical plug to the Foam Bullet® electrical receptor, as shown in the image
below.

Electrical Cover
Connection

5) Wrap the connection with electrical tape to protect it from the car wash elements.

6) Tuck the electrical connection into the Foam Bullet® and reassemble the Foam Bullet®.
