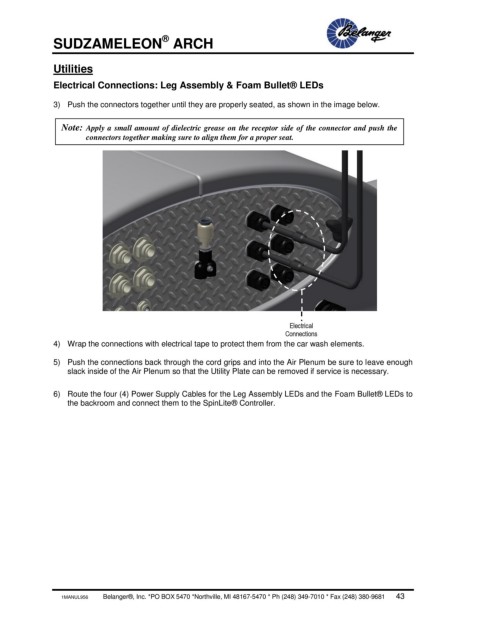

               Electrical Connections: Leg Assembly & Foam Bullet® LEDs

               3)  Push the connectors together until they are properly seated, as shown in the image below.


                 Note: Apply a small amount of dielectric grease on the receptor side of the connector and push the
                       connectors together making sure to align them for a proper seat.



























                                                                           Electrical
                                                                          Connections
               4)  Wrap the connections with electrical tape to protect them from the car wash elements.

               5)  Push the connections back through the cord grips and into the Air Plenum be sure to leave enough
                  slack inside of the Air Plenum so that the Utility Plate can be removed if service is necessary.


               6)  Route the four (4) Power Supply Cables for the Leg Assembly LEDs and the Foam Bullet® LEDs to
                  the backroom and connect them to the SpinLite® Controller.
