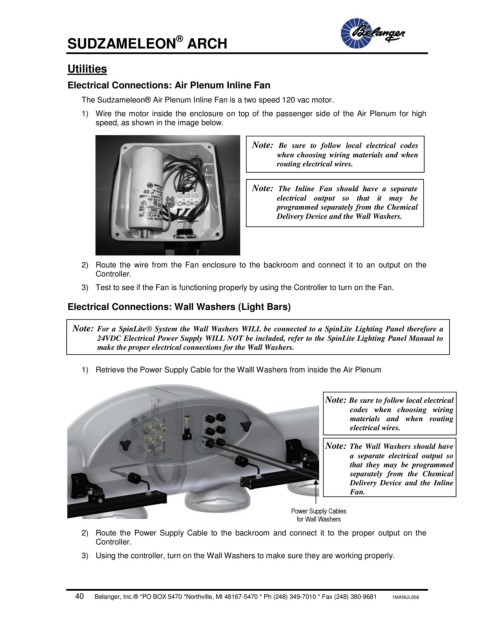

Page 44 - Sudzameleon® Arch

®
SUDZAMELEON ARCH

Utilities

Electrical Connections: Air Plenum Inline Fan
The Sudzameleon® Air Plenum Inline Fan is a two speed 120 vac motor.
1) Wire the motor inside the enclosure on top of the passenger side of the Air Plenum for high
speed, as shown in the image below.

Note: Be sure to follow local electrical codes
when choosing wiring materials and when
routing electrical wires.

Note: The Inline Fan should have a separate
electrical output so that it may be
programmed separately from the Chemical
Delivery Device and the Wall Washers.

2) Route the wire from the Fan enclosure to the backroom and connect it to an output on the
Controller.
3) Test to see if the Fan is functioning properly by using the Controller to turn on the Fan.

Electrical Connections: Wall Washers (Light Bars)

Note: For a SpinLite® System the Wall Washers WILL be connected to a SpinLite Lighting Panel therefore a
Wire for DS Wall Washer
24VDC Electrical Power Supply WILL NOT be included, refer to the SpinLite Lighting Panel Manual to
make the proper electrical connections for the Wall Washers.

1) Retrieve the Power Supply Cable for the Walll Washers from inside the Air Plenum

Note: Be sure to follow local electrical
codes when choosing wiring
materials and when routing
electrical wires.
Note: The Wall Washers should have
a separate electrical output so
that they may be programmed
separately from the Chemical
Delivery Device and the Inline
Fan.

Power Supply Cables

for Wall Washers
2) Route the Power Supply Cable to the backroom and connect it to the proper output on the
Controller.
3) Using the controller, turn on the Wall Washers to make sure they are working properly.
