SUDZAMELEON ARCH

Installation

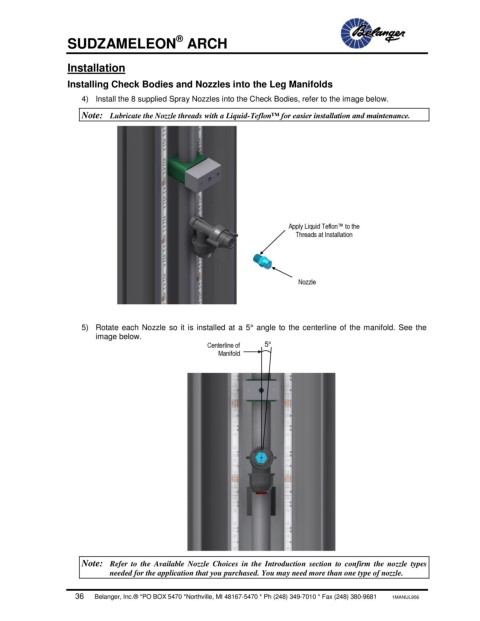

Installing Check Bodies and Nozzles into the Leg Manifolds

4) Install the 8 supplied Spray Nozzles into the Check Bodies, refer to the image below.

Note: Lubricate the Nozzle threads with a Liquid-Teflon™ for easier installation and maintenance.

Apply Liquid Teflon™ to the
Threads at Installation

Nozzle

5) Rotate each Nozzle so it is installed at a 5° angle to the centerline of the manifold. See the
image below.
Centerline of 5°
Manifold

Note: Refer to the Available Nozzle Choices in the Introduction section to confirm the nozzle types
needed for the application that you purchased. You may need more than one type of nozzle.

36 Belanger, Inc.® *PO BOX 5470 *Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL956
