1063 PROGRAMMING AND OPERATION
Chapter 3 Operator Interface/Programming
Setup

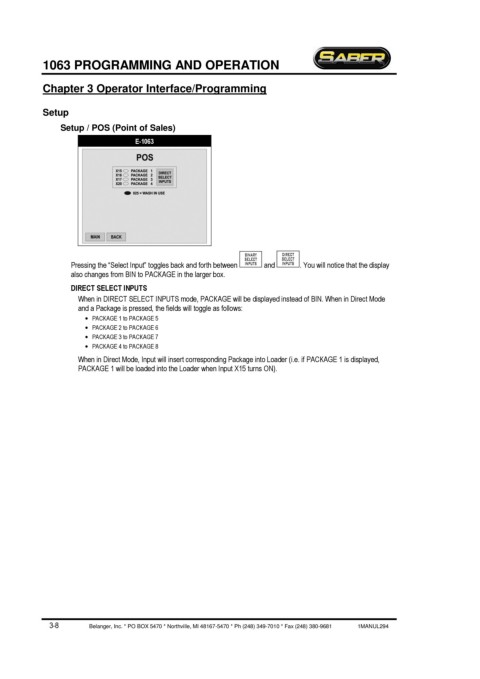

Setup / POS (Point of Sales)
E-1063
Pressing the “Select Input” toggles back and forth between and . You will notice that the display
also changes from BIN to PACKAGE in the larger box.
DIRECT SELECT INPUTS
When in DIRECT SELECT INPUTS mode, PACKAGE will be displayed instead of BIN. When in Direct Mode
and a Package is pressed, the fields will toggle as follows:
· PACKAGE 1 to PACKAGE 5
· PACKAGE 2 to PACKAGE 6
· PACKAGE 3 to PACKAGE 7
· PACKAGE 4 to PACKAGE 8
When in Direct Mode, Input will insert corresponding Package into Loader (i.e. if PACKAGE 1 is displayed,
PACKAGE 1 will be loaded into the Loader when Input X15 turns ON).
