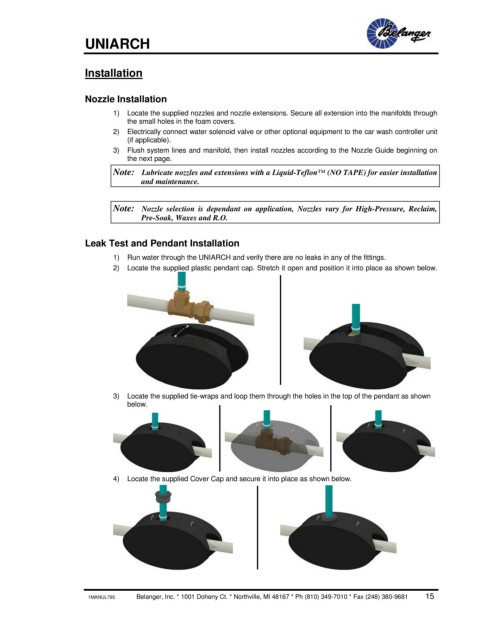

Installation

Nozzle Installation
1) Locate the supplied nozzles and nozzle extensions. Secure all extension into the manifolds through
the small holes in the foam covers.
2) Electrically connect water solenoid valve or other optional equipment to the car wash controller unit
(if applicable).
3) Flush system lines and manifold, then install nozzles according to the Nozzle Guide beginning on
the next page.
Note: Lubricate nozzles and extensions with a Liquid-Teflon™ (NO TAPE) for easier installation
and maintenance.

Note: Nozzle selection is dependant on application, Nozzles vary for High-Pressure, Reclaim,
Pre-Soak, Waxes and R.O.

Leak Test and Pendant Installation
1) Run water through the UNIARCH and verify there are no leaks in any of the fittings.
2) Locate the supplied plastic pendant cap. Stretch it open and position it into place as shown below.

3) Locate the supplied tie-wraps and loop them through the holes in the top of the pendant as shown
below.

4) Locate the supplied Cover Cap and secure it into place as shown below.
