Maintenance

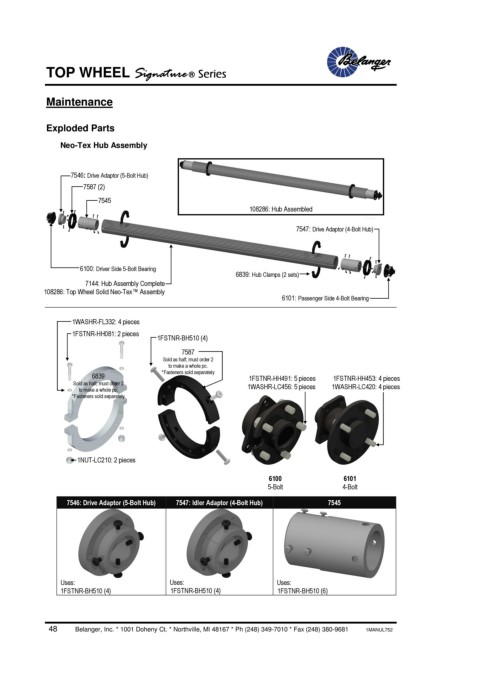

Exploded Parts

Neo-Tex Hub Assembly

7546: Drive Adaptor (5-Bolt Hub)
7587 (2)

7545
108286: Hub Assembled

7547: Drive Adaptor (4-Bolt Hub)

6100: Driver Side 5-Bolt Bearing
6839: Hub Clamps (2 sets)
7144: Hub Assembly Complete

108286: Top Wheel Solid Neo-Tex™ Assembly
6101: Passenger Side 4-Bolt Bearing

1WASHR-FL332: 4 pieces
1FSTNR-HH081: 2 pieces
1FSTNR-BH510 (4)
7587
Sold as half; must order 2
to make a whole pc.
*Fasteners sold separately
6839 1FSTNR-HH491: 5 pieces 1FSTNR-HH453: 4 pieces
Sold as half; must order 2
to make a whole pc. 1WASHR-LC456: 5 pieces 1WASHR-LC420: 4 pieces
*Fasteners sold separately

1NUT-LC210: 2 pieces

6100 6101
5-Bolt 4-Bolt

7546: Drive Adaptor (5-Bolt Hub) 7547: Idler Adaptor (4-Bolt Hub) 7545

Uses: Uses: Uses:
1FSTNR-BH510 (4) 1FSTNR-BH510 (4) 1FSTNR-BH510 (6)
