MAINTENANCE

Chapter 3 General Repairs

Pumping Station

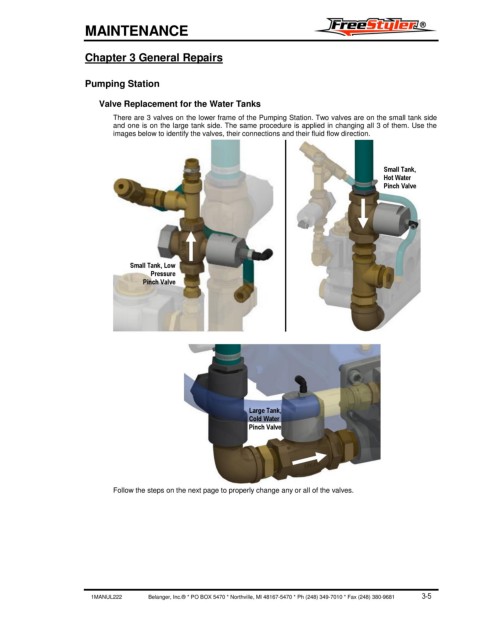

Valve Replacement for the Water Tanks
There are 3 valves on the lower frame of the Pumping Station. Two valves are on the small tank side
and one is on the large tank side. The same procedure is applied in changing all 3 of them. Use the
images below to identify the valves, their connections and their fluid flow direction.

Small Tank,
Hot Water
Pinch Valve

Small Tank, Low
Pressure
Pinch Valve

Large Tank,
Cold Water
Pinch Valve

Follow the steps on the next page to properly change any or all of the valves.
