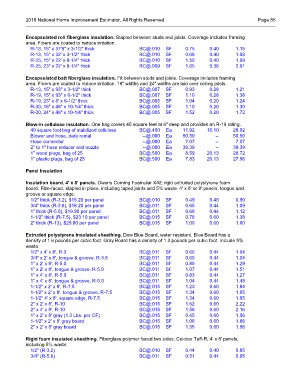

2018 National Home Improvement Estimator, All Rights Reserved Page 85

Encapsulated roll fiberglass insulation. Stapled between studs and joists. Coverage includes framing
area. Fibers are coated to reduce irritation.
R-13, 15" x 37'6" x 3-1/2" thick BC@.010 SF 0.75 0.40 1.15
R-13, 15" x 32' x 3-1/2" thick BC@.010 SF 0.68 0.40 1.08
R-25, 15" x 22' x 8-1/4" thick BC@.010 SF 1.59 0.40 1.99
R-25, 23" x 22' x 8-1/4" thick BC@.009 SF 1.65 0.36 2.01

Encapsulated batt fiberglass insulation. Fit between studs and joists. Coverage includes framing
area. Fibers are coated to reduce irritation. 16" widths and 24" widths are laid over ceiling joists.
R-13, 15" x 93" x 3-1/2" thick BC@.007 SF 0.93 0.28 1.21
R-19, 15" x 93" x 6-1/2" thick BC@.007 SF 1.10 0.28 1.38
R-19, 23" x 8' x 6-1/2" thick BC@.005 SF 1.04 0.20 1.24
R-30, 16" x 48" x 10-1/4" thick BC@.005 SF 1.10 0.20 1.30
R-30, 24" x 48" x 10-1/4" thick BC@.005 SF 1.52 0.20 1.72

Blow-in cellulose insulation. One bag covers 40 square feet at 6" deep and provides an R-19 rating.
40 square foot bag of stabilized cellulose BC@.400 Ea 11.92 16.10 28.02
Blower and hose, daily rental --@.000 Ea 50.50 -- 50.50
Hose connector --@.000 Ea 7.07 -- 7.07
2" to 1" hose reducer and nozzle --@.000 Ea 39.39 -- 39.39
1" wood plugs, bag of 25 BC@.500 Ea 8.59 20.13 28.72
1" plastic plugs, bag of 25 BC@.500 Ea 7.83 20.13 27.96

Panel Insulation

Insulation board, 4' x 8' panels. Owens Corning Foamular XAE rigid extruded polystyrene foam
board. Film-faced, stapled in place, including taped joints and 5% waste. 4' x 8' or 9' panels, tongue and
groove or square edge.
1/2" thick (R-3.2), $15.20 per panel BC@.010 SF 0.49 0.40 0.90
3/4" thick (R-3.8), $18.20 per panel BC@.011 SF 0.65 0.44 1.09
1" thick (R-5.0), $19.90 per panel BC@.011 SF 0.68 0.44 1.12
1-1/2" thick (R-7.5), $23.10 per panel BC@.015 SF 0.78 0.60 1.38
2" thick (R-13), $29.80 per panel BC@.015 SF 1.00 0.60 1.60

Extruded polystyrene insulated sheathing. Dow Blue Board, water resistant. Blue Board has a
density of 1.6 pounds per cubic foot. Gray Board has a density of 1.3 pounds per cubic foot. Include 5%
waste.
1/2" x 4' x 8', R-3 BC@.011 SF 0.60 0.44 1.04
3/4" x 2' x 8', tongue & groove, R-3.8 BC@.011 SF 0.60 0.44 1.04
1" x 2' x 8', R-5.0 BC@.011 SF 0.85 0.44 1.29
1" x 2' x 8', tongue & groove, R-5.0 BC@.011 SF 1.07 0.44 1.51
1" x 4' x 8', R-5.0 BC@.011 SF 0.83 0.44 1.27
1" x 4' x 8', tongue & groove, R-5.0 BC@.011 SF 1.04 0.44 1.48
1-1/2" x 2' x 8', R-7.5 BC@.015 SF 1.23 0.60 1.84
1-1/2" x 2' x 8', tongue & groove, R-7.5 BC@.015 SF 1.34 0.60 1.95
1-1/2" 4' x 8', square edge, R-7.5 BC@.015 SF 1.34 0.60 1.95
2" x 2' x 8', R-10 BC@.015 SF 1.62 0.60 2.22
2" x 4' x 8', R-10 BC@.015 SF 1.56 0.60 2.16
1" x 2' x 8' gray (1.3 Lbs. per CF) BC@.015 SF 0.45 0.60 1.06
1-1/2" x 2' x 8' gray board BC@.015 SF 1.06 0.60 1.66
2" x 2' x 8' gray board BC@.015 SF 1.35 0.60 1.96

Rigid foam insulated sheathing. Fiberglass polymer faced two sides, Celotex Tuff-R, 4' x 8' panels,
including 5% waste.
1/2" (R-3.2) BC@.010 SF 0.44 0.40 0.85
3/4" (R-5.6) BC@.011 SF 0.51 0.44 0.95
