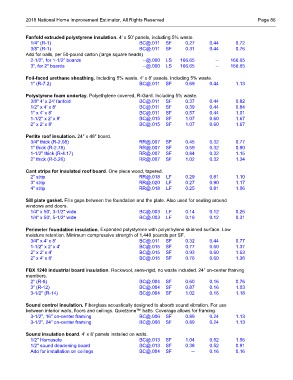

Page 107 - 2018 National Home Improvement

2018 National Home Improvement Estimator, All Rights Reserved Page 86

Fanfold extruded polystyrene insulation. 4' x 50' panels, including 5% waste.
1/4" (R-1) BC@.011 SF 0.27 0.44 0.72
3/8" (R-1) BC@.011 SF 0.31 0.44 0.76
Add for nails, per 50-pound carton (large square heads)
2-1/2", for 1-1/2" boards --@.000 LS 166.65 -- 166.65
3", for 2" boards --@.000 LS 166.65 -- 166.65

Foil-faced urethane sheathing. Including 5% waste. 4' x 8' panels. Including 5% waste.
1" (R-7.2) BC@.011 SF 0.69 0.44 1.13

Polystyrene foam underlay. Polyethylene covered, R-Gard. Including 5% waste.
3/8" 4' x 24' fanfold BC@.011 SF 0.37 0.44 0.82
1/2" x 4' x 8' BC@.011 SF 0.39 0.44 0.84
1" x 4' x 8' BC@.011 SF 0.57 0.44 1.01
1-1/2" x 2' x 8' BC@.015 SF 1.07 0.60 1.67
2" x 2' x 8' BC@.015 SF 1.07 0.60 1.67

Perlite roof insulation. 24" x 48" board.
3/4" thick (R-2.08) RR@.007 SF 0.45 0.32 0.77
1" thick (R-2.78) RR@.007 SF 0.59 0.32 0.90
1-1/2" thick (R-4.17) RR@.007 SF 0.84 0.32 1.15
2" thick (R-5.26) RR@.007 SF 1.02 0.32 1.34

Cant strips for insulated roof board. One piece wood, tapered.
2" strip RR@.018 LF 0.29 0.81 1.10
3" strip RR@.020 LF 0.27 0.90 1.17
4" strip RR@.018 LF 0.25 0.81 1.06

Sill plate gasket. Fills gaps between the foundation and the plate. Also used for sealing around
windows and doors.
1/4" x 50', 3-1/2" wide BC@.003 LF 0.14 0.12 0.26
1/4" x 50', 5-1/2" wide BC@.003 LF 0.19 0.12 0.31

Perimeter foundation insulation. Expanded polystyrene with polyethylene skinned surface. Low
moisture retention. Minimum compressive strength of 1,440 pounds per SF.
3/4" x 4' x 8' BC@.011 SF 0.32 0.44 0.77
1-1/2" x 2' x 4' BC@.015 SF 0.77 0.60 1.37
2" x 2' x 4' BC@.015 SF 0.93 0.60 1.53
2" x 4' x 8' BC@.015 SF 0.76 0.60 1.36

FBX 1240 industrial board insulation. Rockwool, semi-rigid, no waste included. 24" on-center framing
members.
2" (R-8) BC@.004 SF 0.60 0.16 0.76
3" (R-12) BC@.004 SF 0.87 0.16 1.03
3-1/2" (R-14) BC@.004 SF 1.02 0.16 1.18

Sound control insulation. Fiberglass acoustically designed to absorb sound vibration. For use
between interior walls, floors and ceilings. Quietzone™ batts. Coverage allows for framing.
3-1/2", 16" on-center framing BC@.006 SF 0.89 0.24 1.13
3-1/2", 24" on-center framing BC@.006 SF 0.89 0.24 1.13

Sound insulation board. 4' x 8' panels installed on walls.
1/2" Homasote BC@.013 SF 1.04 0.52 1.56
1/2" sound deadening board BC@.013 SF 0.38 0.52 0.91
Add for installation on ceilings BC@.004 SF -- 0.16 0.16
