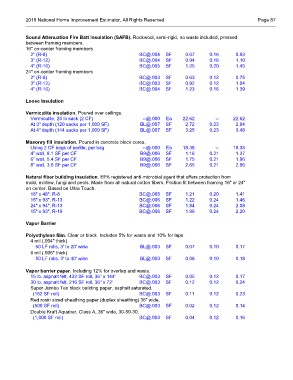

Page 109 - 2018 National Home Improvement

2018 National Home Improvement Estimator, All Rights Reserved Page 87

Sound Attenuation Fire Batt Insulation (SAFB). Rockwool, semi-rigid, no waste included, pressed
between framing members.
16" on-center framing members
2" (R-8) BC@.004 SF 0.67 0.16 0.83
3" (R-12) BC@.004 SF 0.94 0.16 1.10
4" (R-16) BC@.005 SF 1.25 0.20 1.45
24" on-center framing members
2" (R-8) BC@.003 SF 0.63 0.12 0.75
3" (R-12) BC@.003 SF 0.92 0.12 1.04
4" (R-16) BC@.004 SF 1.23 0.16 1.39

Loose Insulation

Vermiculite insulation. Poured over ceilings.
Vermiculite, 25 lb sack (2 CF) --@.000 Ea 22.62 -- 22.62
At 3" depth (120 sacks per 1,000 SF) BL@.007 SF 2.72 0.23 2.94
At 4" depth (144 sacks per 1,000 SF) BL@.007 SF 3.25 0.23 3.48

Masonry fill insulation. Poured in concrete block cores.
Using 2 CF bags of perlite, per bag --@.000 Ea 18.38 -- 18.38
4" wall, 8.1 SF per CF B9@.006 SF 1.16 0.21 1.37
6" wall, 5.4 SF per CF B9@.006 SF 1.75 0.21 1.96
8" wall, 3.6 SF per CF B9@.006 SF 2.65 0.21 2.86

Natural fiber building insulation. EPA registered anti-microbial agent that offers protection from
mold, mildew, fungi and pests. Made from all natural cotton fibers. Friction fit between framing 16" or 24"
on center. Based on Ultra Touch.
16" x 48", R-8 BC@.005 SF 1.21 0.20 1.41
15" x 93", R-13 BC@.006 SF 1.22 0.24 1.46
24" x 94", R-13 BC@.006 SF 1.84 0.24 2.08
15" x 93", R-19 BC@.006 SF 1.96 0.24 2.20

Vapor Barrier

Polyethylene film. Clear or black. Includes 5% for waste and 10% for laps.
4 mil (.004" thick)
50 LF rolls, 3' to 20' wide BL@.003 SF 0.07 0.10 0.17
6 mil (.006" thick)
50 LF rolls, 3' to 40' wide BL@.003 SF 0.08 0.10 0.18

Vapor barrier paper. Including 12% for overlap and waste.
15 lb. asphalt felt, 432 SF roll, 36" x 144' BC@.003 SF 0.05 0.12 0.17
30 lb. asphalt felt, 216 SF roll, 36" x 72' BC@.003 SF 0.12 0.12 0.24
Super Jumbo Tex black building paper, asphalt saturated,
(162 SF roll) BC@.003 SF 0.11 0.12 0.23
Red rosin sized sheathing paper (duplex sheathing) 36" wide,
(500 SF roll) BC@.003 SF 0.02 0.12 0.14
Double Kraft Aquabar, Class A, 36" wide, 30-50-30,
(1,000 SF roll) BC@.003 SF 0.04 0.12 0.16
