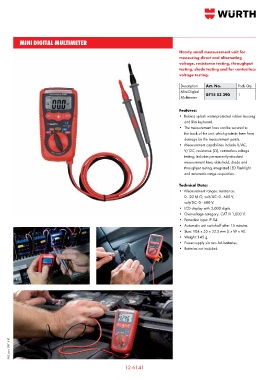

Page 1084 - Wurth Total Catalogue

MINI DIGITAL MULTIMETER

Handy small measurement unit for
measuring direct and alter nating
voltage, resistance testing, throughput
testing, diode testing and for contactless
voltage testing.

Description Art. No. Pack Qty.
Mini Digital
Multimeter 0715 53 390 1

Features:
• Robust, splash water-protected rubber housing
and film keyboard.
• The measurement lines can be secured to
the back of the unit, which protects them from
damage by the measurement points.
• Measurement capabilities include V/AC,
V/ DC, resistance (Ω), contactless voltage
testing; includes permanently- attached
measurement lines, data hold, diode and
throughput testing, integrated LED flashlight
and automatic range acquisition.

Technical Data:
• Measurement ranges: resistance:
0 - 20 M Ω, volt/AC: 0 - 600 V,
volt/DC: 0 - 600 V.
• LCD display with 2,000 digits.
• Overvoltage category: CAT III 1,000 V.
• Protection type: IP 54.
• Automatic unit switch-off after 15 minutes.
• Size: 104 x 55 x 32.5 mm (L x W x H).
• Weight: 145 g.
• Power-supply via two AA batteries.
• Batteries not included.
