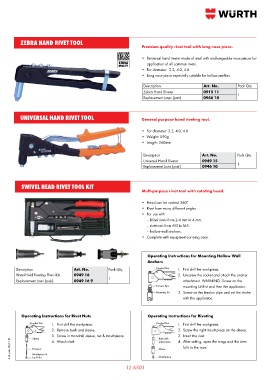

ZEBRA HAND RIVET TOOL
Premium quality rivet tool with long nose piece.

• Universal hand riveter made of steel with exchangeable nose pieces for
application of all common rivets.
• For diameter: 3.2, 4.0, 4.8.
• Long nose piece especially suitable for hollow profiles.

Description Art. No. Pack Qty.
Zebra Hand Riveter 0915 11 1
Replacement Jaws (pair) 0946 10

UNIVERSAL HAND RIVET TOOL General purpose hand riveting tool.

• For diameter: 3.2, 4.0, 4.8
• Weight: 590g
• Length: 260mm

Description Art. No. Pack Qty.
Universal Hand Riveter 0949 15
Replacement Jaws (pair) 0946 10 1

SWIVEL HEAD RIVET TOOL KIT
Multi-purpose rivet tool with rotating head.

• Head can be rotated 360º
• Rivet from many different angles
• For use with
– blind rivets from 2.4 mm to 4 mm,
– rivet nuts from M3 to M5.
– hollow-wall anchors.
• Complete with equipment-carrying case.

Operating Instructions for Mounting Hollow Wall
Anchors
Description Art. No. Pack Qty. Knurled Nut I. First drill the workpiece.
Hand-Held Riveting Pliers Kit 0949 16 2. Unscrew the socket and attach the anchor
Replacement Jaws (pair) 0949 16 9 1 attachment. WARNING: Screw on the
Tension Pipe mounting kit first and then the applicator.
Mounting Kit 3. Screw on the tension pipe and set the stroke
with the applicator.

Operating Instructions for Rivet Nuts Operating Instructions for Riveting
Knurled Nut I. First drill the workpiece. Knurled Nut I. First drill the workpiece.
2. Remove bush and sleeve. 2. Screw the right mouthpiece on the sleeve.
3. Screw in mandrel, sleeve, nut & mouthpiece. Bush with 3. Insert the rivet.
Sleeve
AUS. pub. 08/17 © Extractor Sleeve falls to the rear.
4. Attach rivet.
4. After setting, open the tongs and the stem
spiked jaws
Mouthpiece &
Mouthpiece
Lock Nut
