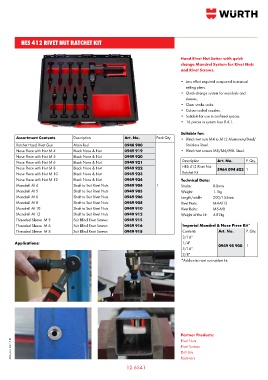

Page 1089 - Wurth Total Catalogue

HES 412 RIVET NUT RATCHET KIT

Hand Rivet Nut Setter with quick
change Mandrel System for Rivet Nuts
and Rivet Screws.

• Less effort required compared to manual
setting pliers.
• Quick-change system for mandrels and
sleeves.
• Clear stroke scale.
• Colour-coded nozzles.
• Suitable for use in confined spaces.
• 16 pieces in system box 8.4.1.

Suitable for:
Assortment Contents Description Art. No. Pack Qty. • Blind rivet nuts M4 to M12 Aluminium/Steel/
Ratchet Hand Rivet Gun Main Tool 0948 900 Stainless Steel.
Nose Piece with Nut M 4 Black Nose & Nut 0949 919 • Blind rivet screws M5/M6/M8. Steel.
Nose Piece with Nut M 5 Black Nose & Nut 0949 920
Nose Piece with Nut M 6 Black Nose & Nut 0949 921 Description Art. No. P. Qty.
Nose Piece with Nut M 8 Black Nose & Nut 0949 922 HES 412 Rivet Nut 5964 094 803 1
Nose Piece with Nut M 10 Black Nose & Nut 0949 923 Ratchet Kit
Nose Piece with Nut M 12 Black Nose & Nut 0949 924 Technical Data:
Mandrel M 4 Shaft to Suit Rivet Nuts 0949 904 1 Stroke: 0-8mm
Mandrel M 5 Shaft to Suit Rivet Nuts 0949 905 Weight: 1.1kg
Mandrel M 6 Shaft to Suit Rivet Nuts 0949 906 Length/width: 200/155mm
Mandrel M 8 Shaft to Suit Rivet Nuts 0949 908 Rivet Nuts: M4-M12
Mandrel M 10 Shaft to Suit Rivet Nuts 0949 910 Rivet Bolts: M5-M8
Mandrel M 12 Shaft to Suit Rivet Nuts 0949 912 Weight of the kit: 4.82kg
Threaded Sleeve M 5 Suit Blind Rivet Screws 0949 915
Threaded Sleeve M 6 Suit Blind Rivet Screws 0949 916 Imperial Mandrel & Nose Piece Kit*
Threaded Sleeve M 8 Suit Blind Rivet Screws 0949 918 Contents Art. No. P. Qty.
3/16"
Applications: 1/4" 0949 95 900 1
5/16"
3/8"
*Add-on to rivet nut ratchet kit.

Partner Products:
AUS. pub. 04/17 © Rivet Screws
Rivet Nuts
Drill Bits
Fasteners
