P. 1304

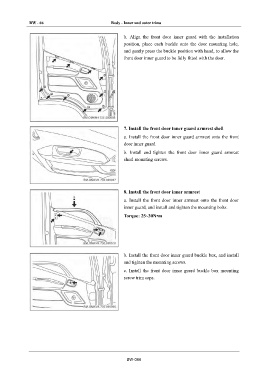

BW - 66 Body - Inner and outer trims
b. Align the front door inner guard with the installation
position, place each buckle onto the door mounting hole,
and gently press the buckle position with hand, to allow the
front door inner guard to be fully fitted with the door.
7. Install the front door inner guard armrest shell
a. Install the front door inner guard armrest onto the front
door inner guard.
b. Install and tighten the front door inner guard armrest
sheel mounting screws.
8. Install the front door inner armrest
a. Install the front door inner armrest onto the front door
inner guard, and install and tighten the mounting bolts.
Torque: 25~30N•m
b. Install the front door inner guard buckle box, and install
and tighten the mounting screws.
c. Install the front door inner guard buckle box mounting
screw trim caps.
BW-066
