Body - Inner and outer trims BW - 63

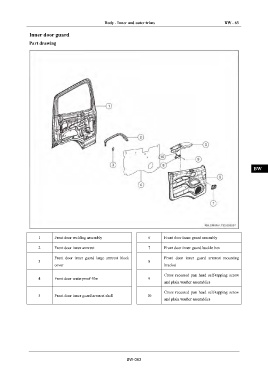

Inner door guard IN
Part drawing
DI
EG
TR
AX
FR
ST
BR
BW
EL
1 Front door welding assembly 6 Front door inner guard assembly
2 Front door inner armrest 7 Front door inner guard buckle box
Front door inner guard large armrest block Front door inner guard armrest mounting
3 8
cover bracket
Cross recessed pan head self-tapping screw
4 Front door waterproof film 9
and plain washer assemblies
Cross recessed pan head self-tapping screw
5 Front door inner guard armrest shell 10
and plain washer assemblies
BW-063
