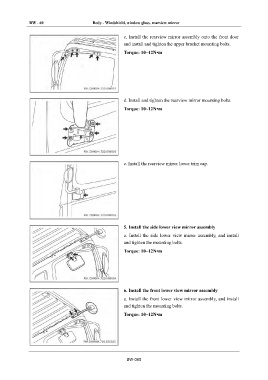

Page 1298 - Foton Workshop Manual - Auman EST-M

BW - 60 Body - Windshield, window glass, rearview mirror

c. Install the rearview mirror assembly onto the front door
and install and tighten the upper bracket mounting bolts.
Torque: 10~12N•m

d. Install and tighten the rearview mirror mounting bolts.

Torque: 10~12N•m

e. Install the rearview mirror lower trim cap.

5. Install the side lower view mirror assembly

a. Install the side lower view mirror assembly, and install
and tighten the mounting bolts.
Torque: 10~12N•m

6. Install the front lower view mirror assembly
a. Install the front lower view mirror assembly, and install
and tighten the mounting bolts.

Torque: 10~12N•m

BW-060
