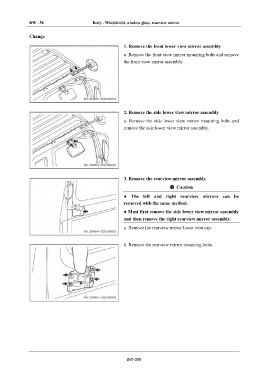

BW - 58 Body - Windshield, window glass, rearview mirror
Change
1. Remove the front lower view mirror assembly
a. Remove the front view mirror mounting bolts and remove
the front view mirror assembly.
2. Remove the side lower view mirror assembly
a. Remove the side lower view mirror mounting bolts and
remove the side lower view mirror assembly.
3. Remove the rearview mirror assembly
Caution
● The left and right rearview mirrors can be
removed with the same method.
● Must first remove the side lower view mirror assembly
and then remove the right rearview mirror assembly.
a. Remove the rearview mirror lower trim cap.
b. Remove the rearview mirror mounting bolts.
BW-058
